REST API

Control FXCanvas from Stream Deck Companion, web applications, and any other HTTP-capable software with the REST API. Use it for custom control surfaces, automation scripts, and show control systems.

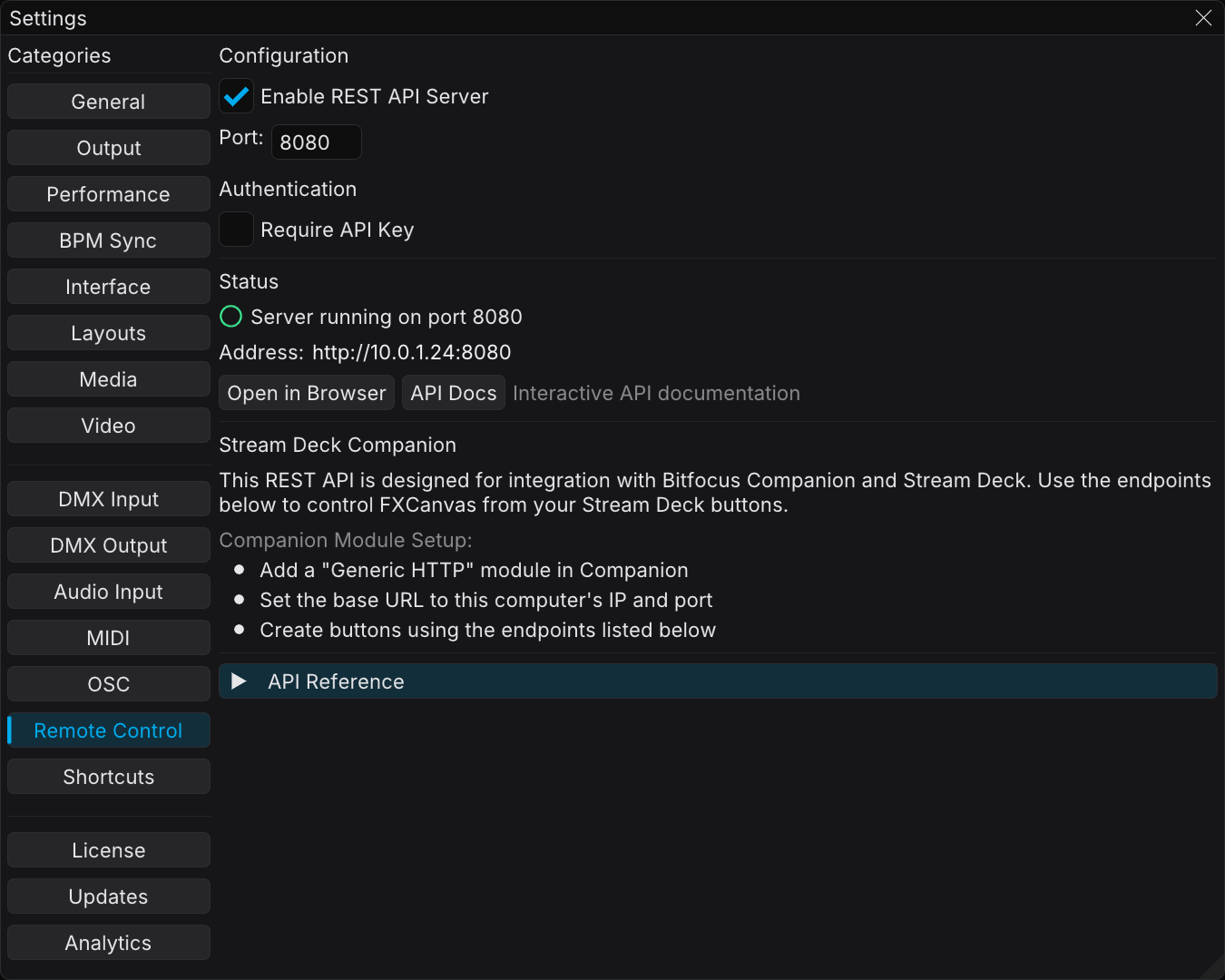

Remote Control settings with the REST API server settings

What is the REST API? Pro​

The REST API gives HTTP endpoints that control FXCanvas. OSC uses UDP messages. The REST API uses standard HTTP requests and JSON responses instead, so it works well with these applications:

  • Bitfocus Companion — Stream Deck control software
  • Web applications — Custom browser-based controllers
  • Automation scripts — Python, Node.js, or any other language with HTTP support
  • Show control systems — QLab, Isadora, and similar software

For the full list of endpoints, the request and response schemas, and example payloads, see the REST API Reference.

Requires a license

The REST API server runs only with an activated license. In the free tier FXCanvas disables the Enable REST API Server checkbox, and the server does not start. See What requires a license.

Getting Started​

Enabling the REST API​

  1. Open Edit → Settings from the menu bar
  2. Select the Remote Control tab in the sidebar
  3. Select Enable REST API Server
  4. Keep the default port 8080, or enter another port number
  5. If you changed the port, click Apply

When you enable the REST API, the status section shows one of these states:

StatusDescription
Server Running (green)FXCanvas is ready to receive HTTP requests
Server Starting... (yellow)The service starts now
Server Disabled (gray)The REST API is disabled

Testing Your Connection​

The fastest test is this:

  1. Enable the REST API in Settings
  2. Click Open in Browser in the Quick Actions section
  3. The browser shows a JSON response with the server status

Or use curl from a terminal:

curl http://localhost:8080/api/v1/status

Interactive Documentation​

When the REST API runs, the interactive documentation is available at these addresses:

  • http://localhost:8080/api/v1/docs — Browse and test all endpoints in your browser
  • http://localhost:8080/api/v1/openapi.yaml — OpenAPI 3.0 spec that you can import into Postman, Insomnia, and other tools

You can also click the API Docs button in Settings → Remote Control.

Stream Deck Companion Setup​

The REST API works with Bitfocus Companion.

Basic Setup​

  1. In Companion, add a Generic HTTP connection
  2. Set the Base URL to the IP address and port of your computer, for example http://192.168.1.100:8080
  3. Create buttons with the endpoints from the API Reference

Example Button Configurations​

Next Palette Button:

  • Method: POST
  • Path: /api/v1/palettes/next
  • Body: (empty)

Select Specific Source:

  • Method: POST
  • Path: /api/v1/sources/select
  • Body: {"name": "Plasma"}

Blackout Toggle:

  • Method: POST
  • Path: /api/v1/global/blackout
  • Body: {"enabled": true}

Master Dimmer (with variable):

  • Method: POST
  • Path: /api/v1/global/dimmer
  • Body: {"value": $(internal:custom_dimmer)}

Thumbnail for button image:

  • Method: GET
  • Path: /api/v1/thumbnails/current?size=72
  • Use as button image (returns PNG)

Authentication​

Authentication is optional. If you want to restrict access, enable it in Settings → Remote Control.

When you enable authentication, send your API key with every request:

  • Header: X-API-Key: your-key-here
  • Or: Authorization: Bearer your-key-here

The /status, /docs, and /openapi.yaml endpoints are always accessible without authentication.

Name Matching​

When you select an item by name, the API uses flexible matching:

  • Case-insensitive: "ocean blues" matches "Ocean Blues"
  • Underscore tolerance: "ocean_blues" matches "Ocean Blues"
  • Hyphen tolerance: "ocean-blues" matches "Ocean Blues"

You can use the names in URLs and scripts without exact formatting.

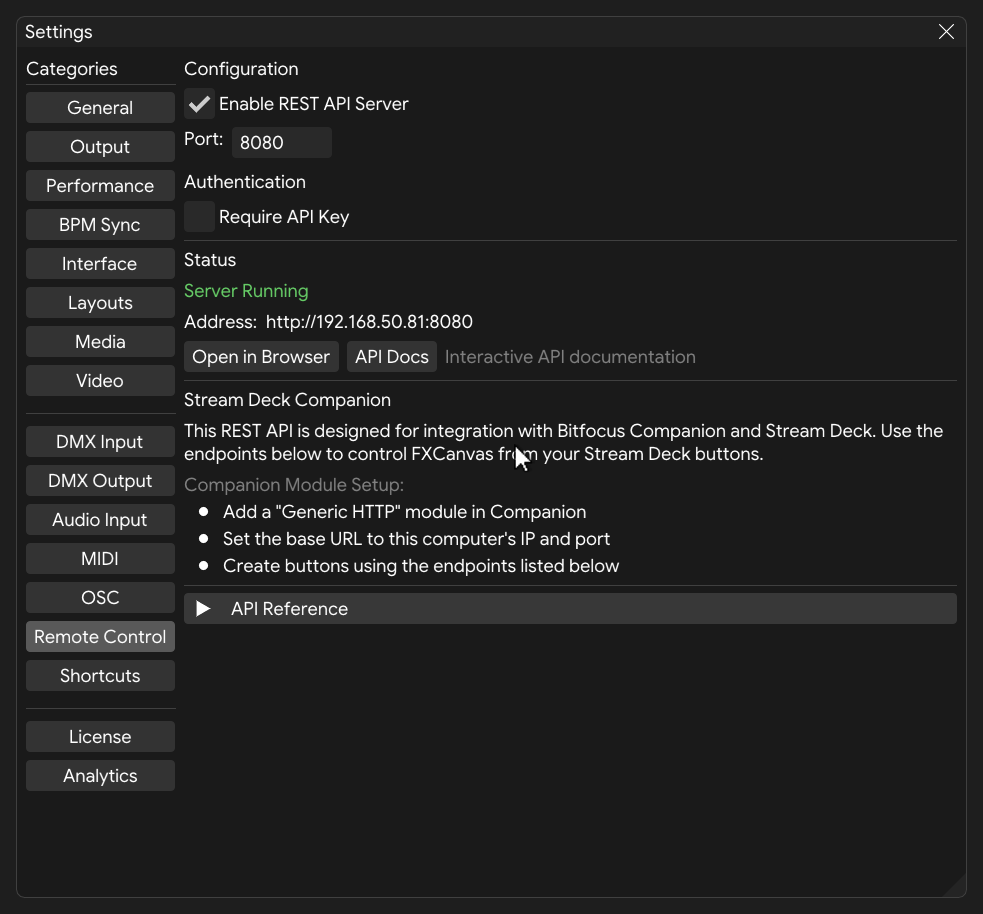

Settings Configuration​

Open the REST API settings from Edit → Settings → Remote Control tab.

SettingDescription
Enable REST API ServerEnables or disables the HTTP server
PortTCP port FXCanvas listens on (default: 8080, range: 1024–65535)
API KeyOptional authentication key
StatusShows the current server state
Network AddressThe URL for access from other devices

Quick Actions​

  • Open in Browser — Opens the status endpoint in your default browser
  • API Docs — Opens the interactive API documentation
  • Copy Base URL — Copies the server URL to the clipboard

Troubleshooting​

Server Not Starting​

  • Another application can hold port 8080. Try a different port.
  • Look in the Log Viewer for error messages

Requests Not Working​

  1. Make sure that the REST API is enabled in Settings
  2. Make sure that the server status reads "Running"
  3. Make sure that you use the correct IP address and port
  4. Make sure that your firewall permits connections on the port

CORS Issues (Web Applications)​

The REST API sends CORS headers that permit requests from any origin. If a CORS error occurs, make sure that you request the correct URL. Also make sure that the server runs.

Item Not Found​

  • Use the list endpoint (for example, GET /api/v1/palettes) to see the available items
  • Names are case-insensitive, and they tolerate underscores and hyphens
  • Or select the item by index
